Remote Power Supply System

TOP > EnglishTOP > Product > Remote System > Remote Power Supply System

Wireless Power Supply/Charging System

イメージ
Product list (Japanese)

Function

This Remote system is Power supply or Charging.
Power supply type Voltage：12V DC and 24V DC
Current：1A...5A
Charging type 30W, 120W, 210W, 600W
※It varies depending on battery voltage or temperature.

Product Line up

Pallarel

  • As it is face type,approaching both in vertical of horizontal direction is possible
  • Power suuply : 2.5A / 24VDC
    Power charge : 600W
対向形（パラレル結合方式）

Overrap coupling

  • Realized efficient power supply.
    24VDC / 1A can be supplied in M30
  • Line up of Connector housing type（Wireless power connector）
嵌合形（オーバーラップ結合方式

Specification

Power supply type

Pallarel

Drive
voltage/current

Distance
max.		SizeType code
Remote partBase part
12V DC/2.5A 10mm 80x80 RVT-210-102-PU-_ _ RVE-210-2-PU-_ _
24V DC/2A 9mm 90x90 RVT-211-22-PU-_ _ RVE-211-2-PU-_ _
24V DC/2A 6mm Φ116

Amplifier：RVT-244-202-PU_ _
Head：RVHT-R01-CP_ _

 Amplifier：RVE-244-2-PU-_ _
Head：RVHE-R01-CP_ _
24V DC/1A 3mm 45x45

RVT-422-201-PU-_ _

 RVE-422-2-PU-_ _
Over rap
Drive
voltage/current		Distance
max.		SizeType code
Remote partBase part
24V DC/1A 10mm M30 RVTI-030-21-PU-_ _ RVEI-030-2-PU-_ _

Charging type

Pallarel
Charging
voltage/current		Distance
max.		SizeType code
Remote part Base part
Chaging unitPassive HeadActive HeadPower supply yunit
30W/14.4V 10mm 80x80 RVT-210-502-PU-_ _ RVE-210-2-PU-_ _
120W/29.0V 10mm 160x110 RVT-433-404-PU-_ _  RVE-433-2-PU-_ _
120W/14.8V 10mm 160x110 RVT-433-508-PU-_ _ RVE-433-2-PU-_ _
210W/7A 10mm  Head：
140×100		 RSC210-PB24  RCS240PH  RCS240AH  RCS240-AC1

30W/28.9V
Lithium-ion Battery

 20mm 80 x 80 RVT-233-401LI-PU-_ _ RVE-233-2-PU-_ _

30W/28.9V
Lithium-ion Battery for Maxell

 20mm Head：
85x85		 RCS30-LI24

  RCS30-TH01   RCS30-EH01  RCS48-DC1

600W/48V

 20mm
or
20...40mm		  Head：170x100, 254x125 RCS600-CA48 RCS600-CH RCS600-AH  RCS600-AC

600W/24V

20mm
or
20...40mm

 Head：170x100, 254x125 RCS600-CA24 RCS600-CH RCS600-AH RCS600-AC

600W/12V

20mm
or
20...40mm

 Head：170x100, 254x125 RCS600-CA12 RCS600-CH RCS600-AH RCS600-AC



There are various types available in terms of shape and function. Please feel free to contact us.

For more information...





Pallarel
Charging
voltage/current		Distance
max.		SizeType code
Remote part Base part
Chaging unitPassive HeadActive HeadPower supply yunit

1000W/48V



 0...15mm Head : 210x150x45 RCS1000-CA48 RCS1000-CH RCS1000-AH RCS1000-AC
20...40mm Head : 250x150x40 RCS1000-CA48 RCS1000-CH-L RCS1000-AH-L RCS1000-AC-L

1000W/24V

0...15mm

 Head : 210x150x45 RCS1000-CA24 RCS1000-CH RCS1000-AH RCS1000-AC
20...40mm Head : 250x150x40 RCS1000-CA24 RCS1000-CH-L RCS1000-AH-L RCS1000-AC-L

2000W/48V

It varies depending on the conditions.

 Head : 250x150x40 RCS2000-CA-48 RCS2000-CH-B48 RCS2000-AH-B48 RCS2000-AC-B48

2000W/24V

 It varies depending on the conditions. Head : 250x150x40 RCS2000-CA-24 RCS2000-CH RCS2000-AH RCS2000-AC-B24



There are various types available in terms of shape and function. Please feel free to contact us.

For more information...

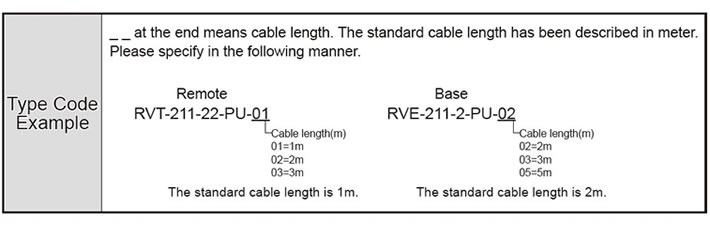

About type code

型式について

Please feel free to contact us

  • Contact us
  • Request Form
