Remote Sensor System

Wireless power supply & Detection signal transmission

Function

Remote system supplies power to standard sensors and also transmits their detected signals.

Signal transimission	Detection signal
Power supply	Drive voltage：12V DC or 24V DC Drive current：5mA ... 1A
	Switch signal	Applicable sensor	Proximity,Photoelectric,Magnetic sensor
		No. of signals	1 / 2 / 4 / 8 / 12 / 15 / 16 / 24 signals
		Interface	NPN or PNP / Parallel output
	Analog signal	Applicable sensor	Thermocouple(K or J type) or Resistance thermometer(Pt)
		Applicable sensor	Load cell ・ Analog sensor・Temperature sensor
		No. of signals	1 / 2 / 8 signals
		Interface	Current output（4...20mA）
			Voltage output　（0...10V）
			RS-232C （Serial）

Product line up

Switch signal

DC 3-Wire Detector type can use the DC 3-Wire detection sensor.
DC 2-Wire Detector type can use the DC 2-Wire detection sensor and Mechanical switch.
Exclusive Detector type can use the RXD series.。
Terminal box for connecting detector sensors and general transmitter.

Analog signal

Thermocouple type : Transmit the temperature measuring signal of thermocouple K/J type and output it as 4…20mA.
Resistance thermometer type : Transmit the temperature measuring signal of platinum resistance temperature detector Pt100 and output it as 4…20mA.
Load cell type : Transmit output signal of compression load cell and output it as 4…20mA.
Analog sensor type : Transmit output signal of analog sensor and output it as 0…10V.
The output to an apparatus higher eight points of transmission as for the temperature sensor specifications of typing it is current output 4 in RS-232C...Even 200mA is available.

Specification

Switch signal

DC 3-Wire Detector type

Remote system supplies power to standard DC 3-Wire detector and also transmits their detected signals.

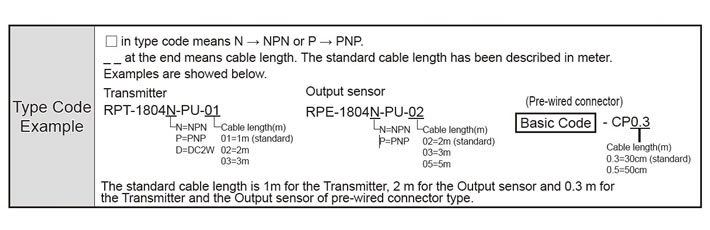

No. of signals	Max. Distance	Size	Type code
No. of signals	Max. Distance	Size	Transmitter	Output sensor
1 signal	4mm	M18	RPT-1804□-PU-_ _	RPE-1804□-PU-_ _
1 signal	8mm	M30	RPT-3008□-PU-_ _	RPE-3008□-PU-_ _
4 signals	3mm	M18	RPTA-1803-PU-_ _	RPEA-1803□-PU-_ _
4 signals	5mm	M30	RPTA-3005-PU-_ _	RPEA-3005□-PU-_ _
8 signals	5mm	M30	RGPT-3005-V1215-PU-_ _	RGPE-3005-V1215□-PU-_ _
	8mm	40x40	RGPT-4008-V1220A/B-PU-_ _	RGPE-4008-V1220□A/B-PU-_ _
	22mm	80x80	RPTA-8015-PU-_ _	RPEA-8015□-PU-_ _
	12mm	90x90	RGPT-9012-V2430-PU-_ _	RGPE-9012-V2430□-PU-_ _
12 signals	5mm	45x45	RS12T-422-PU-_ _	RS12E-422□-PU-_ _
24 signals	10mm	55x55	RS24T-424-PU-_ _	RS24E-424-PU-_ _

No.of signals	Max. Distance	Size	Type code
No.of signals	Max. Distance	Size	Remote terminal	Transmission head	Output head
8 signals	8mm	M30	RS8TA-222P-S04	RSH8T-030-PU-CP	RSH8E-030□-PU_ _
8 signals	8mm	M30	RS8T-222P-S04	RSH8T-030-PU-CP	RSH8E-030□-PU_ _
16 signals	8mm	M30	RS16TA-211P-S04	RSH16T-030-PU-CP	RSH16E-030□-PU_ _
	8mm	M30	RS16T-211P-S04	RSH16T-030-PU-CP	RSH16E-030□-PU_ _
	5mm	M30	RS16TB-211P-S04	RSH16TB-030-PU-CP	RSH16EB-030□-PU_ _

DC 2-Wire Detector type

Remote system supplies power to standard DC 2-Wire detector and also transmits their detected signals.

General type
No. of Signals	Max. Distance	Size	Type code
No. of Signals	Max. Distance	Size	Transmitter	Output sensor
1 signal	2mm	M12	RPT-1202D-PU-_ _	RPE-1202□-PU-_ _
	4mm	M18	RPT-1804D-PU-_ _	RPE-1804□-PU-_ _
	8mm	M30	RPT-3008D-PU-_ _	RPE-3008□-PU-_ _
	1.5mm	25x50	RPT-F0D-PU-_ _	RPE-F0□-PU-_ _
2 signals	4mm	M18	RPT2-1804D-PU-_ _	RPE2-1804□-PU-_ _
2 signals	5mm	M30	RPT2-3005D-PU-_	RPE2-3005□-PU-_ _
4 signals	3mm	M18	RPT4-1803D-PU-_ _	RPE4-1803□-PU-_ _
4 signals	5mm	M30	RPT4-3005D-PU-_ _	RPE4-3005□-PU-_ _
8 signals	3mm	M18	RPT8-1803D-PU-_ _	RPE8-1800□-PU-_ _
8 signals	7mm	M30	RPT8-3007D-PU-_ _	RPE8-3000□-PU-_ _
15 signals	5mm	M30	RPT15-3005D-PU-_ _	RPE15-3000□-PU-_ _
High temperture type
8 signals	3mm	M18	RS08TA-018D-PU-_ _	RS08EA-018□-PU-_ _
8 signals	7mm	M30	RS08TA-030D-PU-_ _	RS08EA-030□-PU-_ _

No. of Signals	Max. Distance	Size	Type code
No. of Signals	Max. Distance	Size	Remote terminal	Transmission head	Output head
8 signals	8mm	M30	RS8TA-222P-S04	RSH8T-030-PU-CP	RSH8E-030□-PU-_ _
8 signals	8mm	M30	RS8T-222P-S04	RSH8T-030-PU-CP	RSH8E-030□-PU-_ _
16 signals	8mm	M30	RS16TA-211D-S04	RSH16T-030-PU-CP	RSH16E-030□-PU-_ _
16 signals	8mm	M30	RS16T-211D-S04	RSH16T-030-PU-CP	RSH16E-030□-PU-_ _

DC 2-wire / DC 3-wire common specification

Commercially available DC 2-wire / DC 3-wire type sensor can be used together

General type
No. of Signals	Max.Distance	Size	Type code
No. of Signals	Max.Distance	Size	Transmitter	Output sensor
12 signals	5mm	45x45	RS12T□-422-PU-_ _	RS12E-422□-PU-_ _

Output sensor/Transmitter integrated type
No. of Signals	Max.Distance	Size	Type code
No. of Signals	Max.Distance	Size	Drive voltage/ Max drive current	Output sensor
12 signals	5mm	45x45	12V / 150mA	RS12-422□-ASET

Exclusive Detector type

Remote Sensor which uses the exclusive proximity sensor RXD.

Applicable sensor	No.of signals	Max. Distance	Size	Type code
Applicable sensor	No.of signals	Max. Distance	Size	Transmitter	Output sensor
Exclusive detector/ RXD series	1 signal	1mm	M8	RST-0801-PU-_ _	RSE-08012□-PU-_ _
		2mm	M12	RXT-1202-PU-_ _	RXE-1202□-PU-_ _
		2mm	M12	RST-1202-PU-_ _	RXE-1202□-PU-_ _
		5mm	M18	RXT-1805-PU-_ _	RXE-1805□-PU-_ _
	8 signals	5mm	M18	RXT8-1805-PU-_ _	RXE8-1800□-PU-_ _
	8 signals	10mm	M30	RXT8-3010-PU-_ _	RXE8-3000□-PU-_ _

Exclusive proximity sesnsor

Product range	Type code	Distance	Size	Applicable Transmitter
RFD series DC 2-Wire type （LED indication）	RFD-0801-PU-_ _	1.5mm	M8	RPT-xxxxD
	RFD-1202-PU-_ _	2mm	M12	RPTx-xxxxD
	RFD-1805-PU-_ _	5mm	M18
	RFD-3010-PU-_ _	10mm	M30
RXD series Exclusive detector type （Not LED indication）	RXD-0801-PU-_ _	1.5mm	M8	RXT-xxxx
	RXD-1202-PU-_ _	2mm	M12	RXT8-xxxx
	RXD-1805-PU-_ _	5mm	M18
	RXD-3010-PU-_ _	10mm	M30

Terminal BOX

Product range	Type code		Notes
Standard type - A box for factory auto mation system is used as the housing. - Protection class; IP 65	4 detectors	RPK-2102	DC 3-wire and 2-wire sensor
	8 detectors	RPK-2101	DC 3-wire and 2-wire sensor
		RPK-2103	DC 3-wire and 2-wire sensor
		RFK-3101	RPT8・RXT8
Waterproof type - Original " α -box" which has a round screw lid. - Protection class; IP67.	8 detectors	RPK-A098-02	DC 3-wire and 2-wire sensor
		RPK-A098-03	DC 3-wire and 2-wire sensor
		RPK-B148-02	DC 3-wire and 2-wire sensor
	15 detectors	RPK-B148-03	DC 3-wire and 2-wire sensor
	8 detectors	RFK-A098-02	RPT8・RXT8
	8 detectors	RFK-A098-03	RPT8・RXT8
Connector type - Detectors can be con nected to Terminal Box with connectors. - Protection class; IP 67.	4 detectors	RPK-4C01-□	DC 3-wire and 2-wire sensor
	8 detectors	RPK-8C01-□	DC 3-wire and 2-wire sensor
		RPK-8C01L-□	RGPT-xxxx用
		RFK-8C01	RXT8

Analog signal

Thermocouple type

Transmit the temperature measuring signal of thermocouple K/J type and output it as 4…20mA.

Sensor type	Measuring range	No.of Signals	Max. Distance	Size	Type Code
Sensor type	Measuring range	No.of Signals	Max. Distance	Size	Transmitter	Output sensor
K	0・・・1000℃	1 signal	4mm	M18	RTT-1804-K100	RTE-1804E-PU-_ _
	0・・・300℃	2 signals	6mm	M30	RS02T-030-K300	RS02E-030E-PU-_ _
	0・・・1000℃	2 signals	4mm	M18	RS02T-018-K1000	RS02E-018E-PU-_ _
	0・・・300℃	2 signals	4mm	M18	RS02T-018-K300
J	0・・・300℃	2 signals	4mm	M18	RS02T-018-J300

Thermocouple specification ring shape

Transfer measurement data of thermocouple K or J type

Sensor type	Measuring range	No.of Signals	Max. Distance	Size	Type Code
Sensor type	Measuring range	No.of Signals	Max. Distance	Size	Transmitter	Output sensor
K	0・・・1000℃	2 signal	8mm	Φ116mm	RS02T-R01-K1000	RS02E-R01E-PU-_ _
	0・・・300℃	2 signals	8mm	Φ116mm	RS02T-R01-K300	RS02E-R01E-PU-_ _
	0・・・300℃	2 signals	15mm	Φ175mm	RS02T-R03-K300	RS02E-R03E-PU-_ _
J	0・・・300℃	2 signals	8mm	Φ116mm	RS02T-R01-J300	RS02E-R01E-PU-_ _

Resistance thermometer type

Transmit the temperature measuring signal of platinum resistance temperature detector Pt100 and output it as 4…20mA.

Sensor type	Measuring range	No.of Signals	Max. Distance	Size	Type Code
Sensor type	Measuring range	No.of Signals	Max. Distance	Size	Transmitter	Output sensor
pt100	0・・・100℃	1 signal	4mm	M18	RTT-1804-PT1B10-PU-_ _	RTE-1804E-PU-_ _
	0・・・200℃				RTT-1804-PT1B20-PU-_ _
	0・・・300℃				RTT-1804-PT1B30-PU-_ _

Temperature sensor type

Transmit the temperature measuring signal of termocouple　(J/K/E/N/R/S/T/B), resistance temperature and thermister.

Compact shape heads and ring shape heads are avairable.

The output signal from the output head is RS-232C.

The current output amplifier RS801E-234E is prepared for current output type.

Sensor type	Measuring range	No.of Signals	Max. Distance	Size	Type Code
Trans. Amplifier	Transmitter	Output sensor
Temperature sensors	Compact shape	termocouple 8 resistance themometer 2 thermister 2	3mm	55x55	RS080Ｔ-233	RSH080T-422-CN	RSH08E-422R-CN
Ring shape	6mm	φ116	RSH08T-R01-CN	RSH08E-R01R-CN

Sensor type

Measuring range

No.of
Signals

Max.
Distance

Size

Type Code

Trans.
Amplifier

Transmitter

Output sensor

Temperature sensors

Compact

shape

termocouple 8

resistance themometer 2

thermister 2

3mm

55x55

RS080Ｔ-233

RSH080T-422-CN

RSH08E-422R-CN

Ring

shape

6mm

φ116

RSH08T-R01-CN

RSH08E-R01R-CN

Load cell type

Transmit output signal of compression load cell and output it as 4…20mA.

Sensor type	Measuring range	No.of Signals	Max. Distance	Size	Type Code
Sensor type	Measuring range	No.of Signals	Max. Distance	Size	Transmitter	Output sensor
ｍV/V	1mV/V	1 signal	4mm	M18	RNT-1804-LC10-PU-_ _	RTE-1804E-PU-_ _
	1.5mV/V				RNT-1804-LC15-PU-_ _
	2mV/V				RNT-1804-LC20-PU-_ _

Analog sensor type

Transmit output signal of analog sensor and output it as 0…10V.

Sensor type	Measuring range	No.of Signals	Max. Distance	Size	Type Code
Sensor type	Measuring range	No.of Signals	Max. Distance	Size	Transmitter	Output sensor
0・・・10V	0・・・10V	1 signal	2.5mm	M18	RNT-1803-VS10-PU-_ _	RNE-1803A-PU-_ _
