Remote Coupler System
Wireless power supply & Bi-directional signal transmission
Function
Possible to bi-directionally transmit detector signal and control signal of moving part.
| Power supply | Drive voltage：24V DC Drive current：300mA...2A |
||||
|---|---|---|---|---|---|
| Signal transmission | Detection signal(Input) ＋ Control signal(Output) | ||||
| Switch signal | No. of signals | 4+4 signals | 8+8 signals | 64+32 signals | |
| Interface | Parallel | Parallel | Paraller RS-232C CC-Link DeviceNet EtherNet/IP |
||
| Data communication | |||||
| Data signal | Protocol |
RS-232C
|
|||
Product line up
Switch signal type
- Possible to bi-directionally transmit detector signal and control signal of moving part.
- Remote unit can be controlled by connecting the solenoid valve and small motors not only detecting sensor
- Wireless power supply : Max 24V/2A
- There are amplifiers that can be connected to various Field-bus
RS-232C type
- Supply 24V/1A in wireless and simultaneously communicate between RS-232C interface system with noncontact.
CC-Link type
- Relay the CC-Link data transmission and simultaneously supply 24VDC/2A in wireless.
DeviceNet type
- Inductively relay DeviceNet communication data and simultaneously supply 24VDC/2A
PROFIBUS-DP type
- Inductively relay PROFIBUS-DP communication data and simultaneously supply 24VDC/2A
IO-Link type
- Inductively relay IO-Link communication data and simultaneously supply 24VDC/2A
Specification
Switch signal
| Drive voltage/Current | No. of signals | Max. Distance | Type code | |||
|---|---|---|---|---|---|---|
| Remote part | Base part | |||||
| 24V DC/300mA | 4＋4 | 10mm | Remote head | RHPT8-8010□-C3- | Base head | RHPE8-8010□-C3-PU-_ _ |
| 24V DC/2A | 8＋8 | 9mm | Remote amplifier |
RC08T-011□-000 | Base amplifiler | RCH08E-211-PU-_ _ |
| Remote head | RCH08T-211-PU-_ _ | Base amplifiler | RC08E-011□-000 | |||
| 24V DC/2A | 64＋32 | 9mm | Remote amplifier | RL64T-344□-000 | Base head | RCH08E-211-PU-_ _ |
| RL64T-345□-000 | ||||||
| Remote head | RCH08T-211-PU-_ _ | Base amplifiler | RL64E-333□-000 | |||
| RL64EA-355DN-000 | ||||||
| RL64E-366CL-000 | ||||||
| RL64E-366EI-000 | ||||||
| Input unit | RLX08-322□ | |||||
| Output unit | RLY04-322□ | |||||
RS-232C type
| Drive Voltage/Current |
Max. | Type code | |
|---|---|---|---|
| Remote part | Base part | ||
| 24V DC/1A | 10mm | RCD11T-211-PU-_ _ | RCD11E-211-PU-_ _ |
CC-Link type
| Drive Voltage/Current | Max. Distance | Type code | |
|---|---|---|---|
| Remote part | Base part | ||
| 24V DC/2A | 5mm | RCD22T-211-CLC | RCD22E-211-CLC |
Device Net type
| Drive Voltage/Current | Max. Distance | Type code | |
|---|---|---|---|
| Remote part | Base part | ||
| 24V DC/2A | 5mm | RCD33T-211-DNC | RCD33E-211-DNC |
Profibus DP type
| Drive Voltage/Current | Max. Distance | Type code | |
|---|---|---|---|
| Remote part | Base part | ||
| 24V DC/2A | 5mm | RCD44T-211-PBC | RCD44E-211-PBC |
IO-Link signal type
| Drive Voltage/Current | Max. Distance | Type code | |
|---|---|---|---|
| Remote part | Base part | ||
| 24V DC/2A | 5mm | RCD55T-211-IOC | RCD55E-211-IOC |

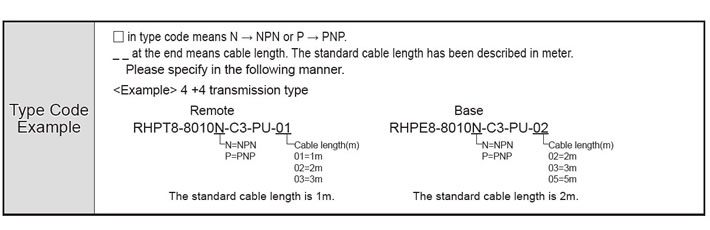

About Type code
Please be sure to use transmitter and output sensor in the combination of the same size with same specifications.
