8-bit System
8-bit system（Simple RF-ID）
Inductive coupling principal suitable for factory automation environment.
- 8 bit parallel output by just facing.
- Complex configuration and ladder program are not required.
- Best way for identification management of jig and dei.

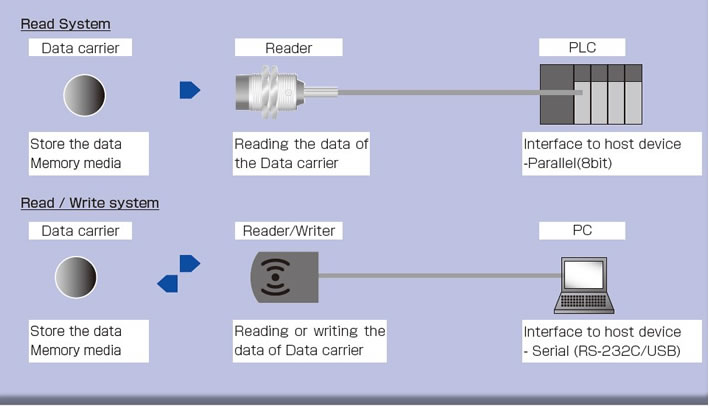

Equipment configuration of 8-bit system
Memory capacity and type Memory capacity and type.
| Memory type | Capacity | Writing cycle | ||
|---|---|---|---|---|
| Reading cycle | Data retention time | |||
| EEPROM | 112 byte | 100,000 | Unlimited | 10 years |
| FRAM | 2K byte | Unlimited | Unlimited | 10 years |
Specification
Data carrier
| Type code | Size | Capacity | Memory | Metal mounting | Standard | Remark |
|---|---|---|---|---|---|---|
| Z1-EA02-128 | φ9.5ｘ2.7 | 112 byte | EEPROM | mountable, non-flush mount |
ISO15693 | Ceramic Data carrier |
| Z1-FA01-128 | φ16ｘ0.9 | No | Flexible Data carrier | |||
| Z1-EC02-128 | φ26ｘ3.4 | mountable, non-flush mount |
Ceramic Data carrier | |||
| Z1-B011-128 | φ50ｘ8.3 | mountable, non-flush mount |
Long distance Data carrier | |||
| Z1-AA04-02K | 30 x 30 x 6 | 2K byte | FRAM | mountable, non-flush mount |
Large capacity |
ID Reader
| Type code | Size | Output | Applicable Data carrier | Remark |
|---|---|---|---|---|
| Z5-AA01N-_ _ | M30x74.5 | NPN | Z1-EA02-128 Z1-FA01-128 Z1-EC02-128 Z1-B011-128 Z1-AA04-02K |
ID Reader starts reading automatically at the same time the ID tag enters in to the reading area. It outputs the 8-bit data directly in parallel. |
| Z5-AA01P-_ _ | PNP | |||
| Z5-AA03N-_ _ | 45 x 45 x 25 | NPN | ||
| Z5-AA03P-_ _ | PNP | |||
| Z5-EA05N-_ _ | 50 x 25 x 10 | NPN | ID Reader starts reading automatically at the same time the ID tag enters in to the reading area. It outputs the 5-bit data directly in parallel. |
|
| Z5-EA05P-_ _ | PNP |
Reader unit
| Type code | Size | Output | Applicable Data carrier | Remark |
|---|---|---|---|---|
| Z5-CA01N-PU_ _ | 55 x 55 x 25.8 | NPN | Used in combination with Z3-A010-CN | 8 bit |
| Z5-CA01P-PU_ _ | PNP | |||
| Z5-DA01N-PU_ _ | NPN | 5 bit | ||
| Z5-DA01P-PU_ _ | PNP |
Reader/Writer
| Type code | Size | Output | Applicable Data carrier | Remark |
|---|---|---|---|---|
Z6-01-U |
120x72x20 | USB |
Z1-EA02-128 Z1-FA01-128 Z1-EC02-128 Z1-B011-128 Z1-AA04-2K |
ID Reader/Writer writes to the Data carrier. |
