RFID Z Series
Z series (Standard)
Inductive coupling principal suitable for factory automation environment.
- Good cost performance.
- Replace from Mitsubishi Electric RFID system.
- Comply with ISO 15693 standard.
- Line-up of Data carrier for various intended use.

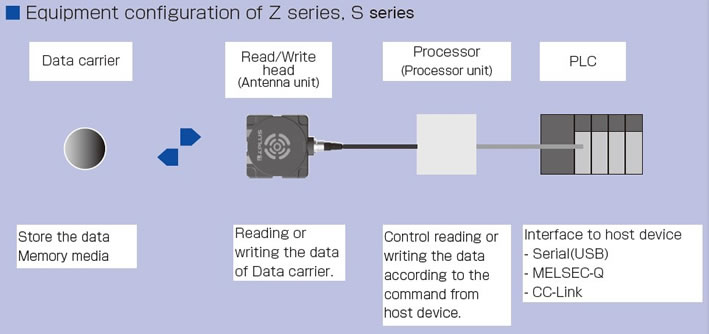

Equipment configuration of Z series
Memory capacity and type Memory capacity and type.
| Memory type | Capacity | Writing cycle | Reading cycle | ||
|---|---|---|---|---|---|
| Data retention time | |||||
| EEPROM | 112 byte | 100,000 | Unlimited | 10 years | |
| RAM | 2K byte | Unlimited | Unlimited | 10 years |
Processing time of 64 byte (between Data carrier and Read/Write head)
| Read | 200ms |
|---|---|
| Write | 200～300ms |
Specification
Data carrier
| Type code | Size | Capacity | Memory | Metal mounting | Standard | Remark |
|---|---|---|---|---|---|---|
| Z1-AA04-02K | 30ｘ30ｘ6 | 2K byte | FRAM | No | ISO15693 | Compatible type with D-2N of Mitsubishi Electric |
| Z1-B011-128 | φ50ｘ8.3 | No | Long distance Data carrier |
ID Read/Write head
| Type code | Size | Connection | Applicable Data carrier | Connect to Processor |
|---|---|---|---|---|
| Z3-A010-CN | Squareness : 80x101x30 |
Connector | Z1-AA04-02K Z1-FA01-128 Z1-FB01-128 Z1-EC02-128 Z1-B011-128 |
By the connector cable |
| Z3-R010-CN |
Connect to RS-232C device |
Processor
| Type code | Interface | Number of connected Read/Write head | Remark |
|---|---|---|---|
| Z4-IQR001 | MELSEC-iQ-R | 2CH | - |
| Z4-Q001 | MELSEC-Q | 2CH | - |
| Z4-Q002 | ID dedicated instruction of QD35ID 1/2 | ||
| Z4-C001 | CC-Link | 2CH | - |
| Z4-C002 | Compatible communication of AJ65BT-D35ID2 |
Antenna cable (between Read/Write head and Processor)
| Type code | Figure | Cable length | Applicable processor | Connection with Processor |
|---|---|---|---|---|
| Z7-A001A-PU-_ _ | M12 straight |
2,5,10,15, |
Z4-Q001、 Z4-Q002 |
Cable (Terminal) |
| Z7-A001A-RB-_ _ | M12 straight | |||
| Z7-A002A-PU-_ _ | M12 angle | |||
| Z7-A002A-RB-_ _ | M12 angle | |||
| Z7-A005A-PU-_ _ | M12 straight | Z4-C001、 Z4-C002 |
D-sub9 pin | |
| Z7-A005A-RB-_ _ | M12 straight | |||
| Z7-A006A-PU-_ _ | M12 angle | |||
| Z7-A006A-RB-_ _ | M12 angle | |||
| Z7-A009A-PU-_ _ | M12 straight | Z4-IQR001 | Connector | |
| Z7-A009A-RB-_ _ | M12 straight | |||
| Z7-A010A-PU-_ _ | M12 angle | |||
| Z7-A010A-RB-_ _ | M12 angle | |||
| Z7-A007-C1 | M12 straight | Curl code | Z3-R010-CN | D-Sub Connector |
