Products ＞ REMOTE System/Remote Sensor System
Introduction Application

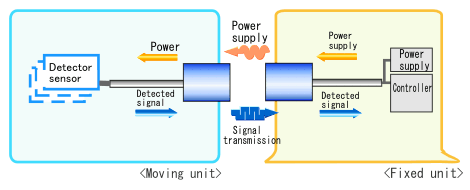

Supplies Power and transmits Detected-signals inductively. 　Function Simultaneously supply operation power to the Detector etc., and transmit detected signal to a controller. Power Supply Driving voltage：12V DC or 24V DC Driving current：5mA ... 300mA Signal transmission Detect signal ■Switching signal Applicable Detector sensor： Proximity, optoelectronic or magnetic switch Transmitting signal： 1/2/4/8/15/16 signals Interface between the controller： NPN or PNP parallel output ■Analog signal Applicable detector sensor： Thermocouple (K / J) Resistance thermometer (Pt) Load cell Transmitting signal： 1/2 signals Interface between the controller： Current output（4...20mA） Voltage output（0...10V） 　System configuration ■Switching signal - DC-3Wire type: Standard switches can be used for DC-3Wire type - DC-2Wire type: Possible to connect with DC2W or mechanical limit switch through resistance. - Exclusive proximity switch type: Proximity switch for Remote sensor is used and space-saving. ■Analog signal - Thermocoupler type : Inductively transmit temperature measuring data from thermocouple, and output in analog value from 4mA to 20mA corresponding to temperature change. - Resistance thermometer sensor type : Inductively transmit temperature measuring data from resistance thermometer, and output in analog value 4mA to 20mA corresponding to temperature change. - Load cell type : Inductively transmit measuring data from load cell, and output in analog value 4mA to 20mA corresponding to temperature change. - Analog sensor type : Supply power to the Analog sensor, inductivelytransmit the output signal and output in analog value from 0 to 10V. 　Specification Switching signal Transmission DC3 wire detector type Sensor type (Detector) Number of Signals Operating distance Size Type code PDF Transmitter Output sensor DC-3 Wire -Standard proximity switch 1 4mm M18 RPT-1804□-PU-_ _ RPE-1804□-PU-_ _ 8mm M30 RPT-3008□-PU-_ _ RPE-3008□-PU-_ _ 4 3mm M18 RPTA-1803-PU-_ _ RPEA-1803□-PU-_ _ 5mm M30 RPTA-3005-PU-_ _ RPEA-3005□-PU-_ _ 8 5mm M30 RGPT-3005-V1215-PU-_ _ RGPE-3005-V1215□-PU-_ _ 8mm 40x40 RGPT-4008-V1220A/B-PU-_ _ RGPE-4008-V1220□A/B-PU-_ _ 15mm 80x80 RPTA-8010-PU-_ _ RPEA-8010□-PU-_ _ 12mm 90x90 RGPT-9012-V2430-PU-_ _ RGPE-9012-V2430□-PU-_ _ Sensor type (Detector) Number of Signals Operating distance Size Type code Remote terminal Transmission head Output head DC-3 Wire -Standard proximity switch 8 8mm M30 RS8T-222P-S04 RSH8T-030-PU-CP1.0 RSH8E-030□-PU_ _ 16 8mm M30 RS16T-211P-S04 RSH16T-030-PU-CP1.0 RSH16E-030□-PU_ _ DC2 wire detector type Sensor type (Detector) Number of Signals Operating distance Size Type code PDF Transmitter Output sensor DC-2 Wire -Standard proximity switch -Exclusive proximity switch/RFD series 1 2mm M12 RPT-1202D-PU-_ _ RPE-1202□-PU-_ _ 4mm M18 RPT-1804D-PU-_ _ RPE-1804□-PU-_ _ 8mm M30 RPT-3008D-PU-_ _ RPE-3008□-PU-_ _ 2 4mm M18 RPT2-1804D-PU-_ _ RPE2-1804□-PU-_ _ 5mm M30 RPT2-3005D-PU-_ _ RPE2-3005□-PU-_ _ 4 3mm M18 RPT4-1803D-PU-_ _ RPE4-1803□-PU-_ _ 5mm M30 RPT4-3005D-PU-_ _ RPE4-3005□-PU-_ _ 8 3mm M18 RPT8-1803D-PU-_ _ RPE8-1800□-PU-_ _ 7mm M30 RPT8-3007D-PU-_ _ RPE8-3000□-PU-_ _ 15 5mm M30 RPT15-3005D-PU-_ _ RPE15-3000□-PU-_ _ Sensor type (Detector) Number of Signals Operating distance Size Type code Remote terminal Transmission head Output head DC-2 Wire -Standard proximity -RFD series 8 8mm M30 RS8T-222P-S04 RSH8T-030-PU-CP1.0 RSH8E-030□-PU-_ _ 16 8mm M30 RS16T-211D-S04 RSH16T-030-PU-CP1.0 RSH16E-030□-PU-_ _ DC2 wire Exclusive detector type Sensor type (Detector) Signals Operating distance Size Type code PDF Transmitter Output sensor -Exclusive proximity switch/RXD series 1 2mm M12 RXT-1202-PU-_ _ RXE-1202□-PU-_ _ 2mm M12 RST-1202-PU-_ _ 5mm M18 RXT-1805-PU-_ _ RXE-1805□-PU-_ _ 8 5mm M18 RXT8-1805-PU-_ _ RXE8-1800□-PU-_ _ 10mm M30 RXT8-3010-PU-_ _ RXE8-3000□-PU-_ _ Exclusive proximity switch RFD/RXD series Sensor type (Detector) Operating distance Size Type code Applicable Transmitter PDF RFD Series : for DC2 wire detector type(with LED) 1.5mm M8 RFD-0801-PU-_ _ RPT-xxxxD RPTx-xxxxD 2mm M12 RFD-1202-PU-_ _ 5mm M18 RFD-1805-PU-_ _ 10mm M30 RFD-3010-PU-_ _ RXD Series : for Exclusive detector type(no LED) 1.5mm M8 RXD-0801-PU-_ _ RXT-xxxx RXT8-xxxx 2mm M12 RXD-1202-PU-_ _ 5mm M18 RXD-1805-PU-_ _ 10mm M30 RXD-3010-PU-_ _ Terminal Box for Connecting Detector and Transmitter Type code Note PDF Standard type -A box for factory automation system is used as the housing. -Protection class; IP 65 max.4 detectors RPK-2102 DC3 Wire・DC2 wire max.8 detectors RPK-2101 DC3 Wire・DC2 wire RPK-2103 DC3 Wire・DC2 wire RFK-3101 RPT8・RXT8 Waterproof type -Orignal "α-box" which has a round screw lid. -Protection class; IP 67 max.8 detectors RPK-A098-02 DC3 Wire・DC2 wire RPK-A098-03 DC3 Wire・DC2 wire RPK-B148-02 DC3 Wire・DC2 wire max.15 detectors RPK-B148-03 DC3 Wire・DC2 wire max.8 detectors RFK-A098-02 RPT8・RXT8 RFK-A098-03 RPT8・RXT8 Connector type -Detectors can be connected to Terminal Box with connecors. -Transmitter is connected with screwless terminal block. -Protection class; IP 67 max.4 detectors RPK-4C01-□ DC3 Wire・DC2 wire max.8 detectors RPK-8C01-□ DC3 Wire・DC2 wire RPK-8C01L-□ RGPT-xxxx RFK-8C01 RXT8 Accessories Type code Note PDF Converting Amplifier -Converts operating voltage from 24V DC to 100V AC then supplies power to AC2 wire detector switch. RGP4T-AC100-KB02A ApplicableTransmitter RGPT-xxxx Handy Checker -Indicates Inzone signal and Output signal (8 signal) on LED,and confirms the sensors operate normally. RSCK-200 Analog signal Transmission Thermocouple Sensor type measuring range Number of Signals Operating distance Size Type code PDF Transmitter Output sensor Amplifier Head Thermocouple K 0・・・1000℃ 1 4mm M18 RTT-1804-K100 RTE-1804E-PU-_ _ 2 4mm M30 RS02T-018-K1000 RS02E-018E-PU-_ _ 0・・・300℃ 2 4mm M30 RS02T-018-K300 Thermocouple J 0・・・300℃ 2 4mm M30 RS02T-018-K300 Resistance thermometer Sensor type measuring range Number of Signals Operating distance max. Size Type code PDF Transmitter Output sensor Resistnace thermometer Pt100 0・・・100℃ 1 4mm M18 RTT-1804-PT1B10-PU-_ _ RTE-1804E-PU-_ _ 0・・・200℃ RTT-1804-PT1B20-PU-_ _ 0・・・300℃ RTT-1804-PT1B30-PU-_ _ Load Cell type Applicable sensor Sensibility Number of Signals Operating distance max. Size Type code PDF Transmitter Output sensor Compression Load cell 1mV/V 1 4mm M18 RNT-1804-LC10-PU-_ _ RTE-1804E-PU-_ _ 1.5mV/V RNT-1804-LC15-PU-_ _ 2mV/V RNT-1804-LC20-PU-_ _ Analog Sensor type Applicable sensor Output voltage Number of Signals Operating distance max. Size Type code Transmitter Output sensor Voltage output analog sensor 0・・・10V 1 2.5mm M18 RNT-1803-VS10-PU-_ _ RNE-1803A-PU-_ _ Wiring User's guide TOP of this page↑
