Remote system solves the problem of related to the rotation, the movement, the machine according to detaching, and Power supply and Transmission signal on the device.
Rotation unit		-No tangled cable -No cable breakage -No need to reverse the table rotation
Removable unit		-No connector attachment nor dis-attachment is needed -Power supply and signal transmission start as soon as exchanging unit. -As electrical part is not exposed, it is safety for operators.
Moving pallet		-Power supply and signal transmission start as soon as a pallet arrives. -As electrical part is not exposed, it is safety for operators. -Compared with connector use, positioning is not severe.

Remote system has following features.
The existence of plastic or glass in the air gap will not influence the efficiency of power supply or signal transmission.		Protection class of our Remote System is IP67, and can be used under heavy duty factory automation conditions.
Input and Output signal can be connected directory to I/O unit on PLC.		If Transmitter(Remote) comes in the transmission area of Output Sensor(Base), it outputs an in-zone signal and informs timing of signal input and output.

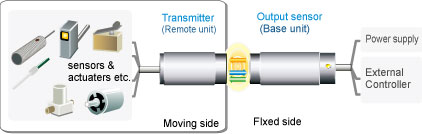

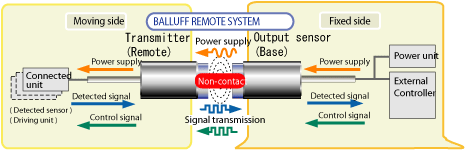

The Remote System is composed of the Transmitter (Remote) attached to moving part and the Output Sensor (Base) attached to fixed part.
Functions of the Transmitter (Remote)		Functions of the Output Sensor (Base)
Accept power from the Output Sensor on fixed part and supply power to the connecting Detector or driving unit, and simultaneously communicate between the Output Sensor. In the case of Separate Amplifier type, it is composed of Head part and Amplifier part.		The Output Sensor is connected to 24VDC and the controller. It inductively supplies power to the Transmitter at the moving part as well as communicates with the Transmitter or the controller. In the case of Separate Amplifier type, it is composed of Head part and Amplifier part.
＊　The Transmitter and the Ourput sensor should be same size on same table.
