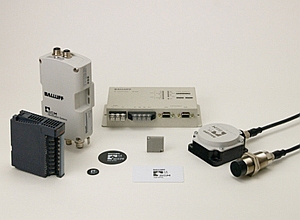

| Data carrier ( Data capacity and Type ) |
|
752byte |
EEPROM
Life time / Read : Unlimited , Write : 100,000 times (Operating temperature : 35 deg.C.)
Deta retention : 10 years |
|
|
2000byte |
FRAM
Life time / Read : Unlimited , Write : 10 billion times (Operating temperature
: 35 deg.C.)
Deta retention : 10 years |
|
|
|
|
| Interface of Host PLC |
|
−MELSEC −Serial（RS-232C) |
|
−CC-Link −DeviceNet |
|
|
|
|
| Data Processing Time （Data processing time for reading and writing is shown below.） |
|
Reading ： 60ms(64byte) |
|
Wiring ： 130ms(64byte) |
|
|
|
|
|
|
|
|
 |
|
|
|
|
 |
|
|
| Specification |
Data carrier
 |
| Size |
Article No. |
Data
capacity |
Memory type |
Block type* |
PDF |
| EEPROM |
FRAM |
16 byte |
| φ30 x 1.6 |
BIS M-101-01/L |
752bytes |
○ |
|
○ |
 |
| φ50 x 1.6 |
BIS M-102-01/L |
752bytes |
○ |
|
○ |
| W85.6×L54×H0.76 |
BIS M-120-01/L |
752bytes |
○ |
|
○ |
| W30×L30×H6 |
BIS M-125-01/L |
752bytes |
○ |
|
○ |
| φ10 x 4.5 |
BIS M-122-02/A |
2000bytes |
|
○ |
○ |
|
| φ20 x 2.5 |
BIS M-110-02/L |
2000bytes |
|
○ |
○ |
| φ30 x 2.5 |
BIS M-111-02/L |
2000bytes |
|
○ |
○ |
| φ50 x 3 |
BIS M-112-02/L |
2000bytes |
|
○ |
○ |
|
|
|
| * Memory Organization : 64 bytes per block |
|
|
Read/Write head
  |
| Size |
Article No. |
Applicable Data carrier |
PDF |
| M18 x 92.5 |
BIS M-302-001-S115 |
BIS M-101/102
BIS M-110/111/112/122 |
|
| M30 x 83 |
BIS M-300-001-S115 |
BIS M-101/102/125
BIS M-110/111/112 |
| 80 x 80 x 40 |
BIS M-301-001-S115 |
BIS M-101/102/120/125
BIS M-110/111/112 |
|
|
|
| Read/Write head cable（For connector type） |
| Figure |
Article No. |
Applicable Read/Write head |
PDF |
| Straight |
BKS S115-PU-_ _ |
BIS S-301-S115, BIS S-301J-S115,
BIS S-302-S115, BIS S-303-S115
|
|
| BKS S115-D-PU-_ _ |
| Angle |
BKS S116-PU-_ _ |
| BKS S116-D-PU-_ _ |

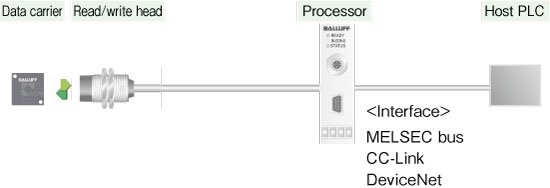

| Connection between Read/write Head and Processor |
|
|
|
|
Processor
 |
| Interface |
Article No. |
Channel |
Remarks |
PDF |
| MELSEC-Bus |
Q |
BIS M-688-001 |
2CH |
− |
|
| CC-Link |
BIS M-689-001 |
2CH |
− |
|
| DeviceNet |
BIS M-6003-025-050-03-ST12 |
2CH |
− |
|
|
|
|
Reader/Writer
|
| Size |
Article No. |
Applicable Data carrier |
PDF |
| M30 x 83 |
BIS M-400-007-001-00-S115 |
BIS M-101 , BIS M-102 , BIS M-120 , BIS M-125 |
|
| 80 x 80 x 40 |
BIS M-401-007-001-00-S115 |
|
|
|
| Handy unit |
| Control unit |
Acsessary（order separately） |
PDF |
| BIS M-810-0-006 |
BIS C-701/A (Charger)
BIS C-702/A (Charging cradle)
BIS C-81.2.4V(Rechargeable battery) |
|
|
