1kW wireless charging [Long-distance head] added release
No.1 in adoption of AGV manufacture options
For 1kW Wireless charging RCS1000
The long-awaited【Long-distance head specfication】has been released!
※【Long-distance head specifications】have a dedicated power transmission / reception head / power supply unit.
『I want to keep the distanace as far as possible』
『It is better to have a wide tolerance for axis misalignmet』
『I want to surround the circumference with metal』
【Long-distance head】are recommended!
『Small size and light weight are good』
『Strong environmnetal resistance in environments exposed to water and oil』
Standard head specifications are recommeded!

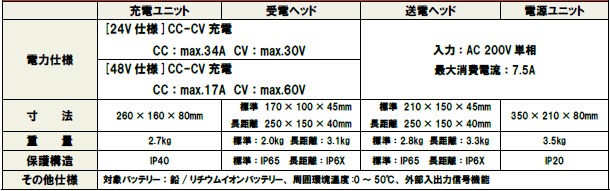

1kW wireless charging RCS1000

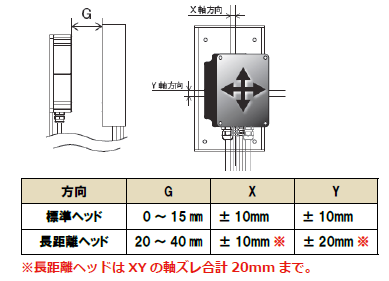

◆Transmission・axis misalignmet

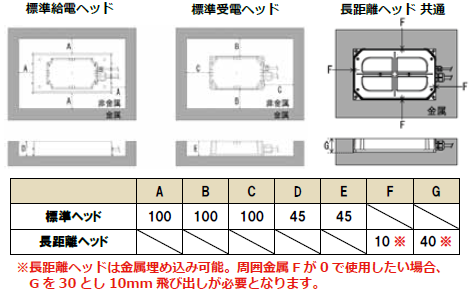

◆Peripheral metal※Dimensions away from metal

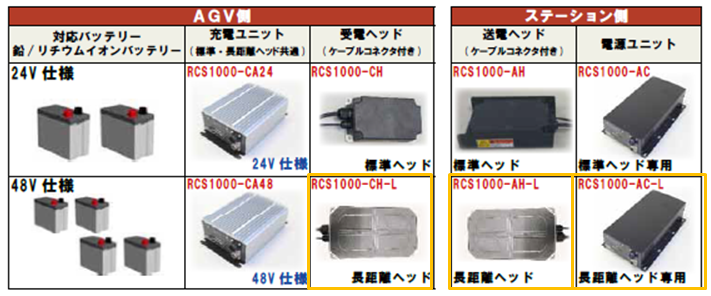

With two head specifications to choose from we propose the best combination for the user's AGV usage environment.

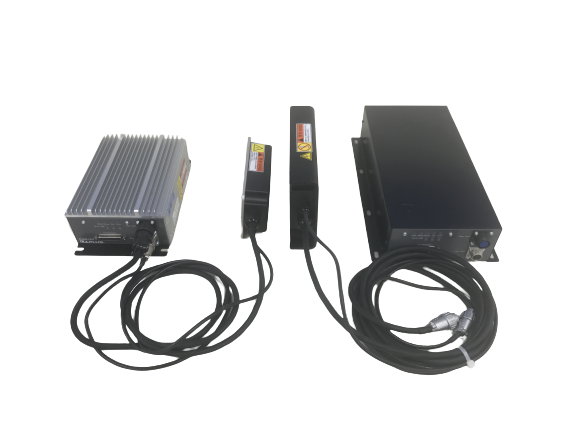

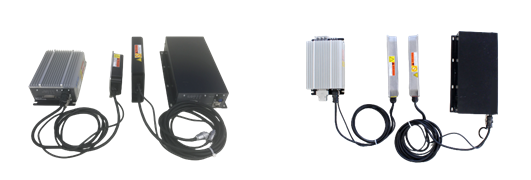

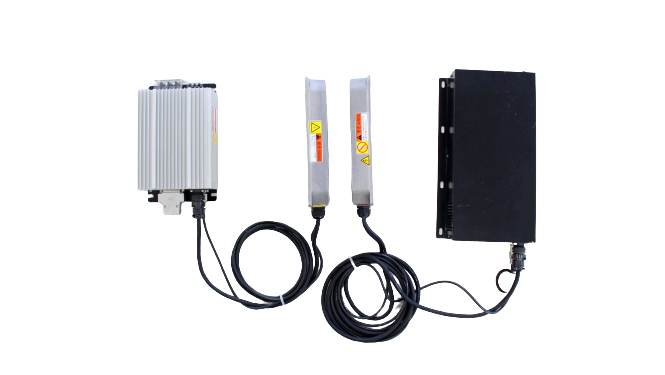

【Standard head specifications】 【Long-distance head specifications】
Please feel free to contact us!
