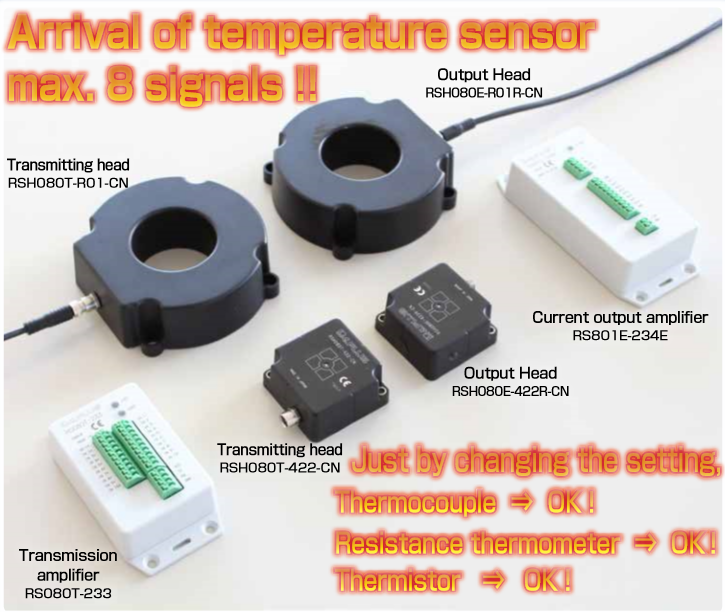

Maximum 8 points! Wireless power supply and temperature signal transmission to a temperature sensor is now possible!

Remote system that can wirelessly supplying power to a temperature sensor while transmitting signals at the same time!
Corresponds with thermocouple, resistance bulb and thermister.
Also it is possibe up to 8 connections to measure when it is thermoelement.

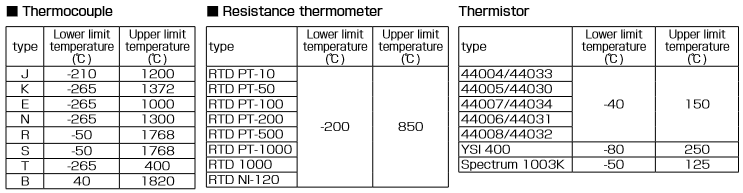

① There are more than 20 different kinds of temperature sensors that can be used!
This system made it possible to
This system can wirelessly power supply and temperature signal transmission to following temerature sensor.
When settingthe temperature sensor, connct the PC to a transmission amplifier and attached to the software.
② Depending on the installation place, ables to change to 2 different heads.
2 different types of system (Compact and ring shape) of head.

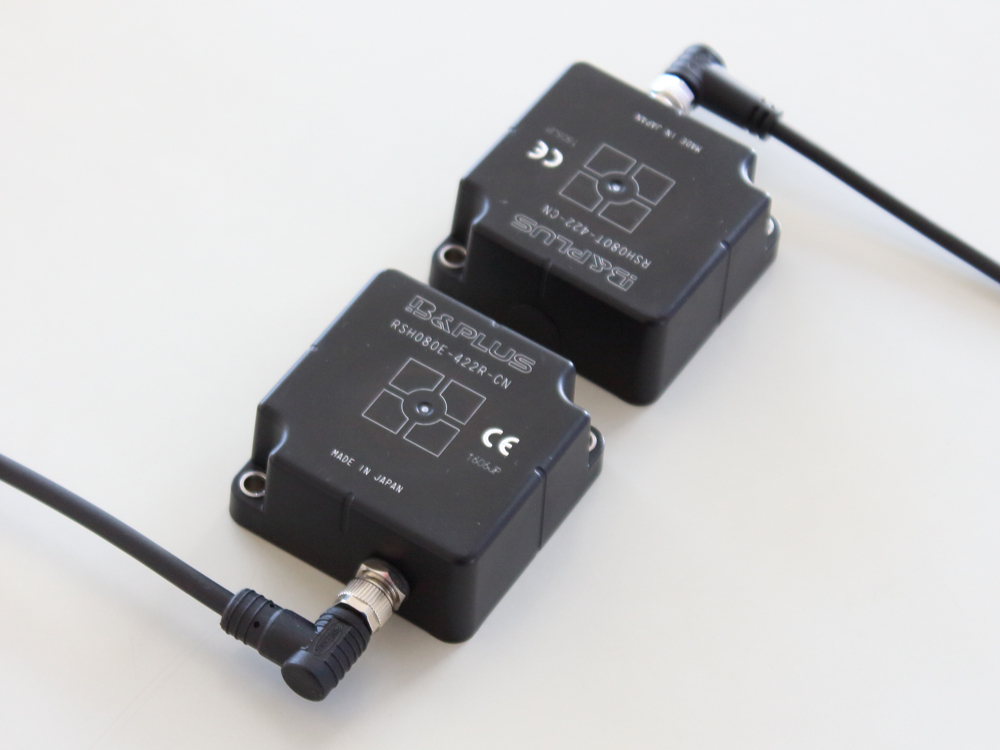

1. Compact Square type shape
Size 55x55x25mm compact shaed ⇒only needs to be fixed with 2 screws.
When facine the heads one another, wireless power supply and singla transfer can be occure to the temperature sensor.
Transmission head model:RSH080T-422-CN
Output head model:RSH080E-422R-CN

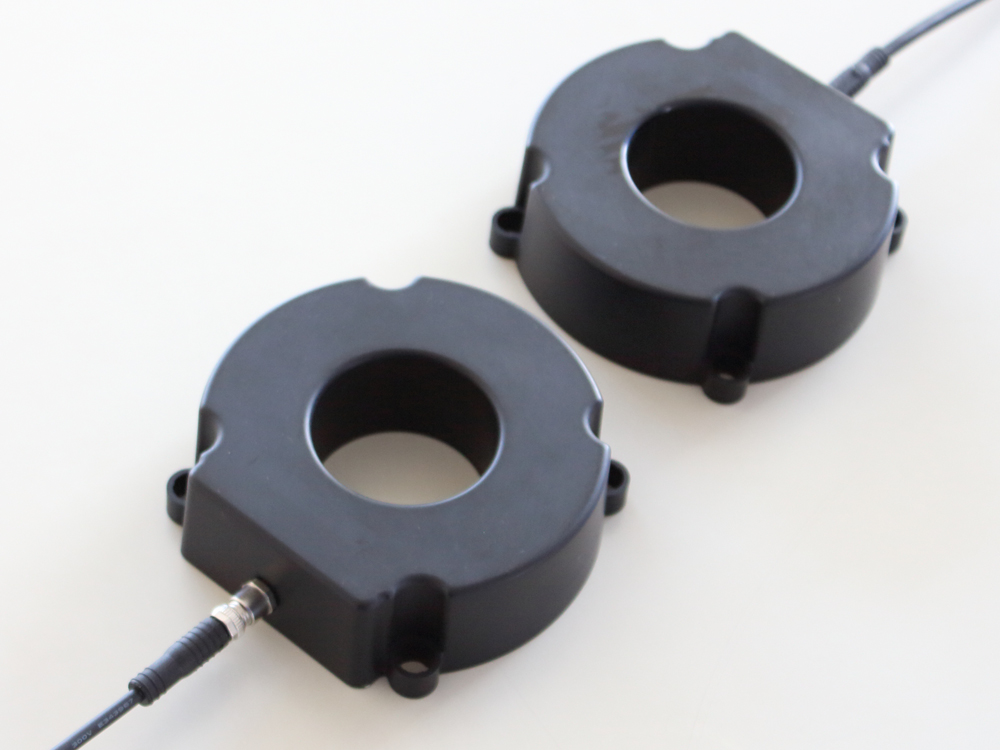

2. Ring shape
Ring shape with φ50 run through holw is in the head. Can be attached to the revolging equipment or a index table.
Can be replaced to a Slip ring.
Transmission head model:RSH080T-R01-CN
Output head model:RSH080E-R01R-CN

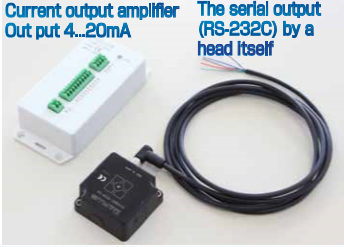

③ 2 types of output.
Temperature signal output from output transmission is serial number RS-232C
It is possible to input to PLC or PC of the Serial interface. When chose to input with current signal, can convert into a current signal of 4...20mA by letting a current output amplifier go through.

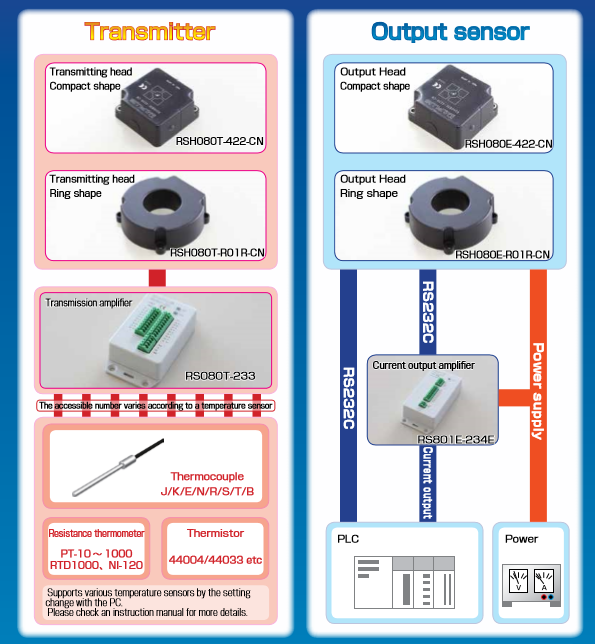

System confituration diagram
Product document
