Products＞REMOTE System/Remote Coupler System
Introduction
Applicarion

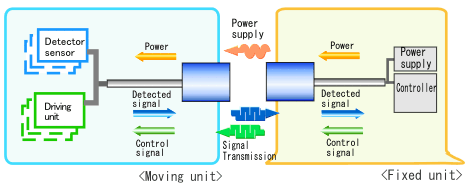

　supplies power and transmits bidirectional signal inductively.
　Function
Simultaneously supply operation power to the Detector or driving unit, transmit interactively detected signal and control signal, and output to the external device.
Supply
power
function		 Driving voltage：24V DC
Driving current：300mA...2A
Signal
transmission
function		 Detected signal + Control signal
■Switching signal
Applicable Detector sensor： Proximity, optoelectronic or magnetic switch
Interface between the controller： NPN or PNP parallel output
Data transmission
■Data signal
Communication Data： RS232C
CC-Link
DeviceNet
　System configuration
■Switching signal
　・ Remote Coupler System which corresponds to ON/OFF signal of interactive detecting signal and control signal
　・ Available for standard switches
　・ Solenoid valve, motor or fan etc. can be also connected to the Remote coupler system to be driven and controlled.
　・ Maximum 2A (24VDC) can be supplied
　・ Separate Amplifier type makes it possible to transmit interactive signal through 2 Air Gaps.

◆Transmitting signal：4＋4 / 8+8 / 64+32 signals

■RS-232C Data transmission
　・ Remote Coupler System for RS-232C data transmission
　・ Maximum 1A (24VDC) can be supplied

■CC-Link Data transmission
・ Remote Coupler System for CC-Link fieldbus data transmission.
・ Maximum 2A (24VDC) can be supplied
■DeviceNet Data transmission
CCL 　・ Remote Coupler System for DeviceNet fieldbus data transmission.
・ Maximum 2A (24VDC) can be supplied

　Specification
Products table
Switch Signal Transmission
Drive voltage/current Number of
Signals		 Operating
distance
max.		 Type code PDF
Remote Base
Amplifier Head Head Amplifier
24V DC/300mA 4＋4 10mm RHPT8-8010□-C3-_ _ RHPE8-8010□-C3-PU-_ _
24V DC/2A 8＋8 9mm RC08T-011□-000 RCH08T-211-PU-_ _ RCH08E-211-PU-_ _ RC08E-011□-000

64＋32

 9mm RL64T-344□-000
RL64T-345□-000
RCH08T-211-PU-_ _ RCH08E-211-PU-_ _ RL64E-333□-000
RL64EA-355DN-000
RL64E-366CL-000
RL64E-366EI-000
Input unit
RLX08-322□
Output unit
RLY04-322□
RS-232C Data Transmission
Drive voltage/current Operating
distance
max.		 Type code PDF
Remote Base
24V DC/1A 10mm RCD11T-211-PU-_ _ RCD11E-211-PU-_ _
CC-Link Data Transmission
Drive voltage/current Operating
distance
max.		 Type code PDF
Remote Base
24V DC/2A 3...5mm RCD22T-211-PU-_ _ RCD22E-211-PU-_ _
DeviceNet Data Transmission
Drive voltage/current Operating
distance
max.		 Type code PDF
Remote Base
24V DC/2A 3...5mm RCD33T-211-PU-_ _ RCD33E-211-PU-_ _
Wiring
User's guide
