| Function |
 |

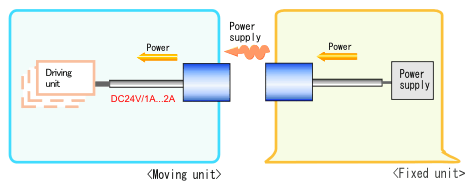

Remote system for power supply only which inductively supply power. |
|
Supply
power
function |
Driving voltage：24V DC
Driving current：1A...2A (24VDC/5A is also available） |
|
|
|
|
|
|
| ■Parallel Coupling type |
 |
- Standard Power Supply System to be used in face-to-face condition
- The system which can supply maximum 5A (24VDC) is available.
|
|
|
| ■Overlap Coupling type |
 |
- Remote Power Supply System by overlap coupling principle with efficient
power supply.
- Maximum 1A (24VDC) can be supplied in M30
- Connector Housing (non-contact power supply connector) is available. |
|
|
|
| Specification |
| Products table |
| Switch Signal Transmission |
| Drive voltage/current |
Operating
distance max. |
Size |
Type code |
PDF |
| Remote |
Base |
| 24V DC/2A |
9mm |
90x90 |
RVT-211-22-PU-_ _ |
RVE-211-2-PU-_ _ |
 |
| Drive voltage/current |
Size |
Type code |
PDF |
| Remote |
Base |
| 24V DC/1A |
M30 |
RVTI-030-21-PU-_ _ |
RVEI-030-2-PU-_ _ |
|
| φ43 |
RVTI-C01-21-PU-_ _ |
RVEI-C01-2-PU-_ _ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
