| Function |
 |

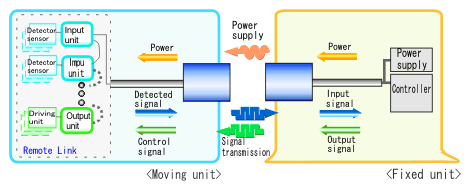

By configurating Remote Link by connecting the Detector or driving unit
to I/O unit, it makes possible to simultaneously supply power to many sensors
or driving unit and transmit I/O signal. |
|
Supply
power
function |
Driving voltage：24V DC
Driving current：1A...2A |
|
|
Signal
transmission
function |
Detected signal + Control signal |
| ■Switching signal |

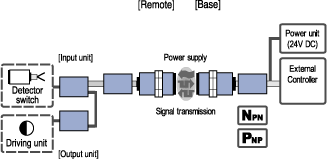

| Applicable Detector sensor： |
Proximity, optoelectronic or magnetic switch |
| Interface between the controller： |
NPN or PNP parallel output
DeviceNet |
|
 |
|
|
|
|
|
|
|
| ■Switching signal |
 |
- Number of transmission signals are detected signal 64 + control signal
32
- available for regular switch
- Solenoid valve and motor are also possible to connect to drive or control
- Connect the Sensor or driving unit to the exclusive I/O unit. Link connection
is made by 4W cable between each I/O unit.
- Maximum 2A (24VDC) can be supplied
|
|
|
|
| Specification |
| Products table |
| Switch Signal Transmission |
| Drive voltage/current |
Number of
Signals |
Operating
distance max. |
Type code |
PDF |
| Remote |
Base |
| Remote Amplifier |
Remote head |
Base head |
Base Amplifier |
| 24V DC/2A |
64＋32 |
9mm |
RL64T-344□-000
RL64T-345□-000 |
RCH08T-211-PU-_ _ |
RCH08E-211-PU-_ _ |
RL64E-333□-000
RL64EA-355DN-000 |
 |
| Unit |
Number of
Signals
(per a unit) |
Type code |
Note |
| Input Unit |
8 |
RLX08-322□ |
max.4 |
| Output Unit |
4 |
RLY04-322□ |
max.8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
※ Refer to the attached Users' guide. |
|
|
|
|
|
