2022/01/31

"2kW wireless charging system" released

最新情報

"2kW wireless charging, the largest capacity among B&PLUS products"                                               The release has finally started!

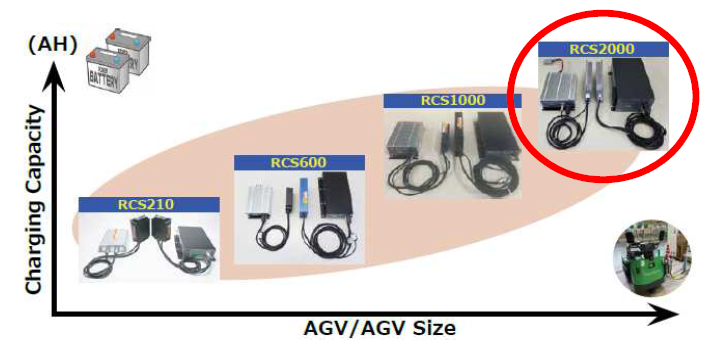

B&PLUS wireless charging system is widely used for battery charging of

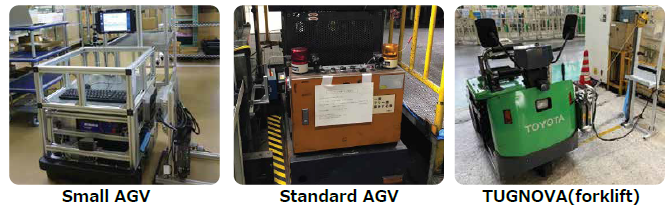

                        AGVs and electric tow vehicle!




 However,the only weakness was that it could not support high-capasity wireless charging
車載バッテリーの充電問題で困っている作業員

                     ×

Large current consumptio
n

Charging time is short

                       ⇓

『Sorry We can't handle it due to lack of power』

            『The cost will go up, but let's increase the number of charging stations』





But if you use 2KW wireless charging system 、、、


ワイヤレス充電になって喜ぶ作業員
        ◎

You can also improve the operation methods that we couldn't handle until now!

”Wireless charging system” realizes maintenance free and 24-hour operation
by eliminating battery replacement and connector connecton!

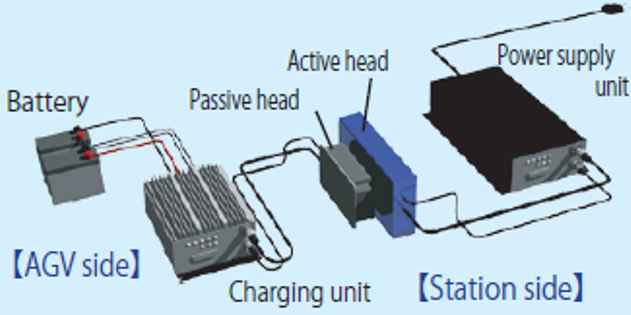

                          Basic product configuration

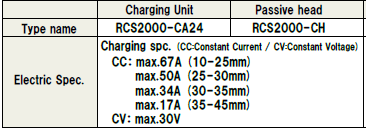

《Charging capacity》Supports high-power quick

charging!More than twicethe conventional product!

◎Charging method is constant current

/ constant voltage charging(CC・CV)



【Comparison of conventional products charging current

1kW wireless charging(RCS1000)

 《24Vspecifiation

 1kW charging current MAX.34A
 ⇓ ⇓ ⇓ ⇓ ⇓
2kW charging current MAX.67A

48Vspecifiation

 1kW charging current  MAX.17A
 ⇓ ⇓ ⇓ ⇓ ⇓
2kW charging current MAX.34A

 『2kw wireless charging system can be charged twice as fast as 1kW wirelesscharging!』

◎Specifiable battery

[24V/48V system] Compatible with lead batteries・lithium-ion batteries



《Transmission range》The transmission distance is 2.3 times that of conventional prod

ucts and can be charged over a wide range.



【Comparison of conventional products】1KW wireless charging(RCS1000)

 1kW Transmission distance… 0~15mm  ※Transmission range15mm
 1kW Long-distance Transmission distance… 20~40mm ※Transmission range20mm

  ⇓ ⇓ ⇓ ⇓ ⇓

 2kW Transmission distance(G)…10~45mm ※Transmission range 35mm

『2kW wireless charging system supports a transmission range that is about twice that conventional models
※Specifications that output changes depending on the distance to support a wide transmission distance

《Functions and others》This is amazaing!2kW wireless charging system


◎Despite its high power!the size of the power transmission / reception head is compact!

Compared to traditonal 1kW wireless charging sysytem,

We were able to achieve "the power transmission / reception head size is the same even thogh the charging capacity is doubled.

The head is more compact than other companies prodact, increasing the degreee of freedom of installation.

◎Check the charging status at a glance with the status display LED! There is a signal input / output functiona outside.







Each unit has a status display LED, so you can check the current status and error display.

It is also possible to output an I / O signal to the outside using the D-sub connector.



Please feel free to contact us!
ワイヤレス充電お問あわせはこちらから


                    With free charging simulation, We will select the most suitable charging system!
