2017/05/02

Perfect for controlling temperature like an agitator! Ring shape thermocouple signal transmission!!

The temperature sensors such as thermocouples are used for the temperature management of the turning equipment including a stirrer and the fuser.  The temperature sensor connects to a connector and manages the temperatue. The turning equipment incluing a stirrer and the fuser have a big centerfugal force and may break a connector by blurring at the time if the turn.

A remote system of the feeding wireless can help from the problems.

回転中
Just face the head to head and can be transmits temeperature signals with no blurring problem!

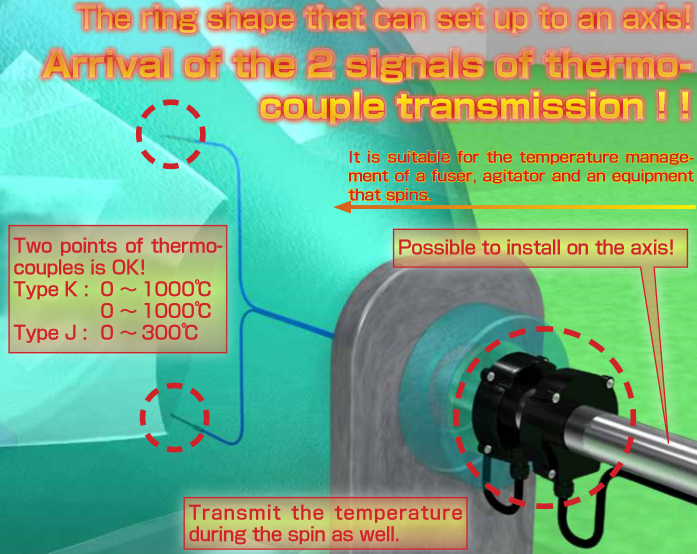

Also because it is ring shape it can be installd to the axis of existing facilities as well!
Stable temperature management guarantee!

Features

○Thermocouple can transmit the temperature during the turn!
○Perfect for substitution of slip ring!
○Because there is no Slide part, high-speed movement is possible!
○φ100type,communication distance up to 15mm、axis gap ±15mm.
○Two types available with diameter φ50 and φ100!

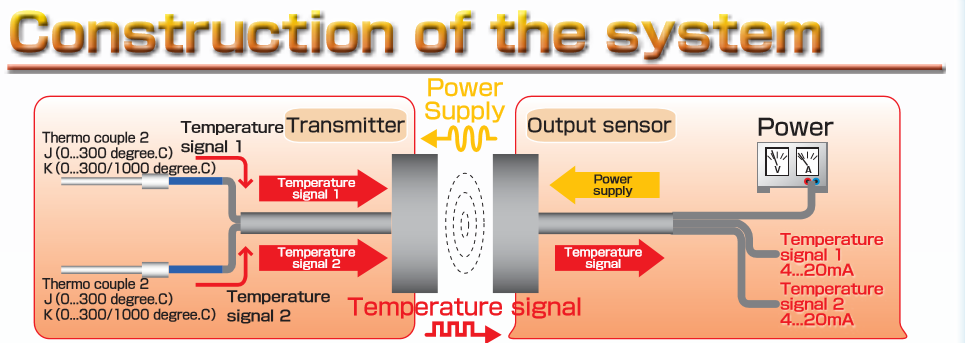

System configuration





The output part connects input apparatus and to a power. Transmission department connects to a temperature sensor. When facing eachother,transmission department driven by wireless feeding, then 2 points of thermocouples transmits the temperature signals to the output part.  The output part temperature signals the current (4...20mA) by temperature signal

For more information⇒PDF
