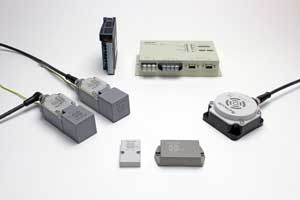

Data carrier ( Data capacity and Type ) |
|
8Kbyte |
FRAM/Life time Read , Write : Unlimited / Deta retention : 10 years |
|
|
|
Interface of Host PLC |
|
−MELSEC-Bus |
|
−CC-Link |
|
−Serial(USB) |
|
|
|
Data Processing Time (Data processing time for reading and writing is shown below.) |
|
Reading : 29ms |
|
Writing : 120ms |
|
|
|
|
|
|
|
|
Specification |

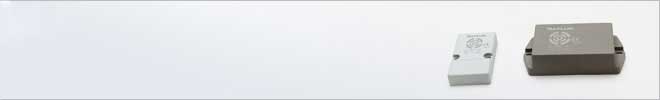

Data carrier
|
Size |
Article No. |
Data
capacity |
Memory type |
Block type* |
PDF |
EEPROM |
FRAM |
32byte |
64byte |
W32×L52×H11 |
BIS S-108-32/L |
8Kbyte |
|
○ |
|
○ |
|
W40×L80×H22 |
BIS S-150-32/A |
8Kbyte |
|
○ |
|
○ |
Influence of surrounding metal |
|
|
|
* Memory Organization : 64 bytes per block |
|
|
|

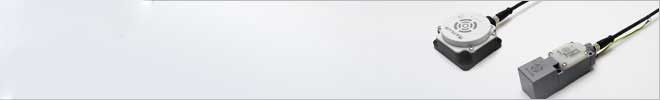

Read/Write head cable(For connector type) |
Figure |
Article No. |
Cable length |
Connection with Processor |
PDF |
Straight |
S7-A001-PU-_ _ |
2,5,10,15,20,25m |
Cable (Terminal) |
|
S7-A002-PU-_ _ |
Angle |
S7-A003-PU-_ _ |
D-sub 9pin |
S7-A004-PU-_ _ |
|
|

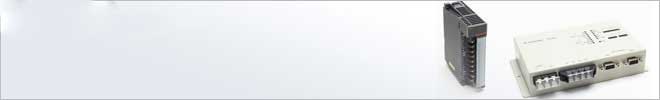

Processor
|
Interface |
Article No. |
Channel |
Remarks |
PDF |
MELSEC-Bus |
S4-Q001 |
2CH |
− |
|
CC-Link |
S4-C001 |
2CH |
− |
|
|
|
|
PC unit |
Read/Write head unit |
Control unit |
Remarks |
PDF |
S3-H010 |
S6-U001 |
Protocol : RS-232C
Connection : USB |
|
|
|
