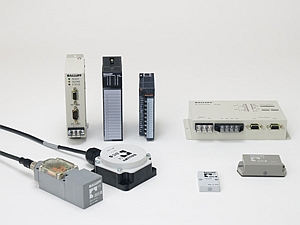

| Data carrier ( Data capacity and Type ) |
|
8Kbyte |
FRAM／Life time Read , Write : Unlimited / Deta retention : 10 years |
|
|
|
|

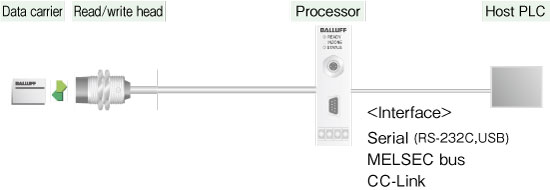

| Interface of Host PLC |
|
−Serial（RS-232C・USB） |
|
−MELSEC-Bus |
|
−CC-Link |
|
|
|
|
| Data Processing Time （Data processing time for reading and writing is shown below.） |
|
Reading ： 29ms |
|
Writing ： 120ms |
|
|
|
|
|
|
|
|
 |
|
|
| Specification |
Data carrier
 |
| Size |
Article No. |
Data
capacity |
Memory type |
Block type* |
PDF |
| EEPROM |
FRAM |
32byte |
64byte |
| W32×L52×H11 |
BIS S-108-32/L |
8Kbyte |
|
○ |
|
○ |
 |
| W40×L80×H22 |
BIS S-150-32/A |
8Kbyte |
|
○ |
|
○ |
| Influence of surrounding metal |
|
|
|
|
| * Memory Organization : 64 bytes per block |
|
|
Read/Write head
 |
| Size |
Article No. |
Applicable Data carrier |
PDF |
| □40×149 |
BIS S-302-PU-_ _ |
BIS S-108 |
|
| BIS S-302-D-PU-_ _ |
| BIS S-303-PU-_ _ |
| BIS S-303-D-PU-_ _ |
| □80×40 |
BIS S-301-PU-_ _ |
BIS S-150 |
| BIS S-301J-PU-_ _ |
| BIS S-301-D-PU-_ _ |
| BIS S-301J-D-PU-_ _ |
| □40×138 |
BIS S-302-S115 |
BIS S-108 |
| BIS S-303-S115 |
| □80×40 |
BIS S-301-S115 |
BIS S-150 |
| Influence of surrounding metal |
|
|
|
|
| Read/Write head cable（For connector type） |
| Figure |
Article No. |
Applicable Read/Write head |
PDF |
| Straight |
BKS S115-PU-_ _ |
BIS S-301-S115, BIS S-301J-S115,
BIS S-302-S115, BIS S-303-S115
|
|
| BKS S115-D-PU-_ _ |
| Angle |
BKS S116-PU-_ _ |
| BKS S116-D-PU-_ _ |
| Connection between Read/write Head and Processor |
|
|
|
|
Processor
 |
| Interface |
Article No. |
Channel |
Remarks |
PDF |
Serial
RS-232C |
Nihon Balluff protocol |
BIS S-401-A30 |
1CH |
− |
|
| BIS S-405-30 |
1CH |
USB |
| MELSEC-Bus |
AnS・QnAS |
BIS S-402-30 |
2CH |
− |
|
| Q |
BIS S-403-00 |
− |
| CC-Link |
BIS S-404-30-KBT01 |
2CH |
− |
|
|
|
|
|
ＩＦcable （Processor／Host PLC） |
| Processor |
IF cable |
Remark |
PDF |
| BIS S-401-A30 |
BIS C-502-PC/BIS C-502-PCJ |
|
|
| BIS S-402-30 |
- |
| BIS S-403-00 |
- |
| BIS S-404-30-KBT01 |
Please prepare the cable only for CC-Link.
|
| BIS S-405-30 |
USB cable (1m/Included) |
| Connection between Processor and External Controller |
|
|
|
|
| PC unit |
| Read/Write head unit |
Control unit |
Remarks |
PDF |
| BIS S-850 |
BIS H4000-30 |
|
|
|
|
|
| Handy unit |
| Read/Write unit |
Control unit |
Acsessary（order separately） |
PDF |
| BIS S-850 |
BIS S-810-0-006 |
BIS C-701/A (Charger)
BIS C-702/A (Charging cradle)
BIS C-81.2.4V(Rechargeable battery)
BIS C-522(Cable for RS-232C) |
|
|
