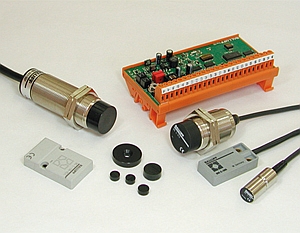

Data carrier ( Data capacity and Type ) |
|
Processing volume of data |
8bit・16bit・64bit
(Data carrier of BIS C series is used.) |
|
|
|
|
Interface of Host PLC |
|
−Parallel 8bit(NPN/PNP) |
|
|
|
|
|
|
|
 |
|
|
|
 |
|
Specification |
Figure |
Size |
Article No. |
Remark |
|
 |
φ16xH7 |
BIS C-130-05/L |
Processing data amount is 8bit・16bit・32bit. |
see
BIS C |
φ26xH6 |
BIS C-128-05/L |
M30xH16 |
BIS C-117-05/A |
BIS C-117-05/L |
 |
W32xL52xH11 |
BIS C-108-05/L |
|
|

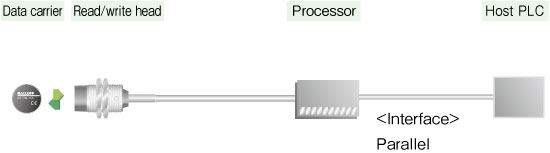

Read/Write head |
Figure |
Size |
Article No. |
Remark |
|
Cable
type |
M16x55 |
BIS C-306-_ _ |
BIS C-130 |
see
BIS C |
φ26xH6 |
BIS C-310-_ _ |
BIS C-180/C-117/C-128/C-130 |
50x25x10 |
BIS C-305-_ _ |
BIS C-180/C-117/C-128/C-130 |
□80x40 |
BIS C-315-_ _ |
BIS C-180/C-117/C-128/C-130 |
|
|
Processor |
bit |
Interface |
Article No. |
Size |
PDF |
8bit |
Parallel |
NPN |
BIS C-40R-001-08N-PU_ _ |
1CH |
 |
PNP |
BIS C-40R-001-08P-PU_ _ |
16bit・
64bit
(8×8) |
Parallel |
NPN |
BIS C-40R-002-08N-PU_ _ |
PNP |
BIS C-40R-002-08P-PU_ _ |
|
|

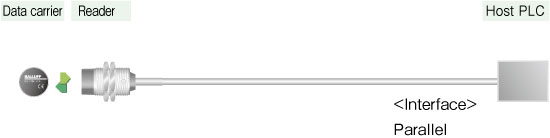

Reader |
bit |
Interface |
Article No. |
Size |
PDF |
8bit |
Parallel |
NPN |
BIS C-61R-001-08N-PU_ _ |
□40×149 |
 |
PNP |
BIS C-61R-001-08N-PU_ _ |
8bit |
Parallel |
NPN |
BIS C-60R-001-08N-PU_ _ |
M30×95 |
PNP |
BIS C-60R-001-08P-PU_ _ |
64bit
(8×8) |
Parallel |
NPN |
BIS C-60R-002-08N-PU_ _ |
PNP |
BIS C-60R-002-08P-PU_ _ |
16bit
(Dinamic) |
Parallel |
NPN |
BIS C-60R-003-08N-PU_ _ |
PNP |
BIS C-60R-003-08P-PU_ _ |
Influence of surrounding metal |
 |
|
