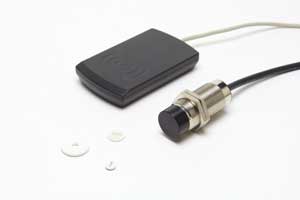

Products＞ Industrial RFID ／ 8bit system.
Introduction
● Complex configuration and ladder program are not required.
● 8 bit parallel output by just facing.
● Simply writing by Reader/writer.
● Comply with ISO 15693 standard.
● Line-up of Data carrier for various intended use.
　Data carrier ( Data capacity and Type )
Processing volume of data 8bit
　Interface of Host PLC
−Parallel 8bit（NPN／PNP）

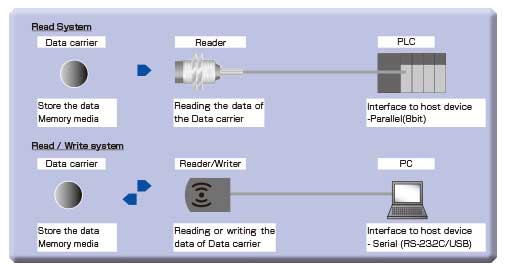

　System configlation
　Specification
Size Article No. Data
capacity		 Memory type

Mounting
on steel

Standard Remark
φ9.5 x 2.7 Z1-EA02-128 112byte EEPROM Mountable
non-flush 		IOS15693 Ceramic Data carrier 詳細をご覧いただけます。
φ16 x 0.9 Z1-FA01-128 No　 Flexible Data carrier
φ26 x 3.4 Z1-EC02-128 Mountable
non-flush 		Ceramic Data carrier
φ50 x 8.3 Z1-B011-128 Mountable
non-flush 		Long distance Data carrier 15
Influence of surrounding metal 詳細をご覧いただけます。
Reader
Interface Figure Article No. Remark PDF
Parallel M30 X 74.5 NPN Z5-AA01N-_ _   詳細をご覧いただけます。
PNP Z5-AA01P-_ _
Reader/Writer
Interface Figure Article No. Remark PDF
Serial 120 X 72 X 20 RS-232C Z6-01-R   詳細をご覧いただけます。
USB Z6-01-U
