Correspond to IO-Link Signal! Wireless power supply makes it possible to implement higher and flexible network!

A remote coupler system of B&Plus can handle wireless power supply and various data signal transmission at the same time.  Products such as 「RS-232C」「CC-Link」「DeviceNet」「PROFIBUS-DP」depending on the needs of the customer's network, we are continuously coming up with a new release products, and here is a
New Released product that corresponds with  IO-Link signal!!

Implementation of IO-Link＆Wireless Power Supply！

IO-Link is control newtetwork for FA that is origin of Germany.

Mostly it has been used in Europe and now spread across the world.

We are releasing a new product that can be used IO-Link signal transmission and Wireless Power Supply at the same time.

Using only the head, it can be wirelessly supply power to the device that is connected to IO-Link. Device can be used and send signals two-ways at the same time. It made it possible to have the device wireless and degree of freedom can be improve in network.

Product document（PDF)

Features

• Wireless Power Supply is possible up to 48W
  The feeding of 24V/2A is possible, when the device connected to lower rank.
• The transmission rate is 38.4Kbps！
• Communication range of 3...5mm / axial displacement ±4mm
• It can be installed to a rotator.
  As long as it is facing each other, it can be transmit rotation on the axis.
• Protective construction IP67
  It is IP67 structure and strong against water and dust.  Useful in the factory and various environments.

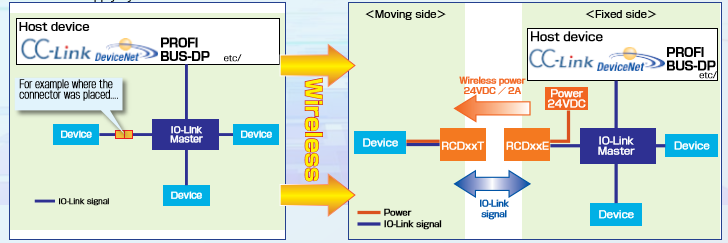

Connection constitution
