2017/02/08

120W without amplifier! A new wireless feeding and chargeing system!

最新情報

New arrival!!  Be able to wirelessly remote power supply120W just by facing wireless charge and the wireless  feeding.

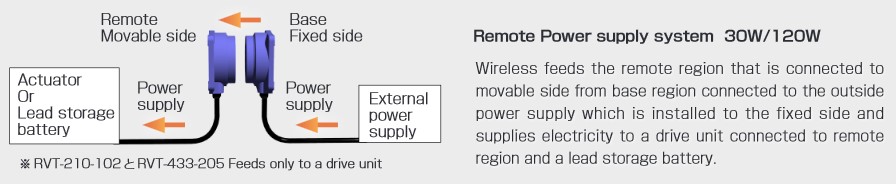

System construction

As for the remote power supply system, there is remote region to connect a lead storage battery and a drive unit, which connects a power supply to.  And it is wirelss and remote region from base region can perform the power supply to charge the drive unit of a lead storage battery connecting and transmits electricity.

システム構成図 e

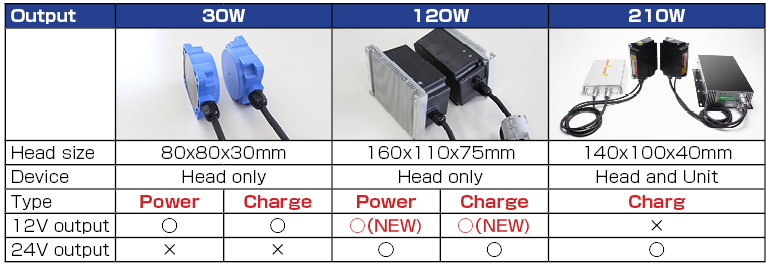

 Product line up

製品ラインナップ

■ Product brochure(PDF)
Wireless Power Supply and charge in each 12V and 24V

120W Wireless Power Supply and charging

○Need less Power!
30W Wireless Power Supply and charging

○Need more Power!
210W Wireless Charging System

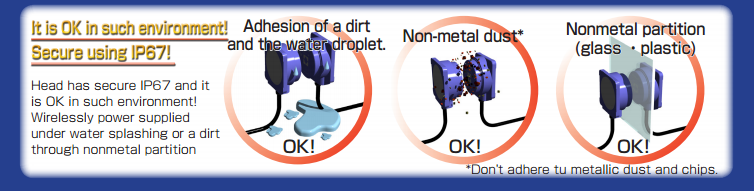

3 Features of secure wireless power supply


120W Wireless Charge and the Power Supply system make it possible to transmit electricity using the electromagnetic induction.  There is no metal point of contact and protected against waterand the dust, with protection of IP67.  It can also transmit even there is glass or plastic(Nonmetal) between the head.

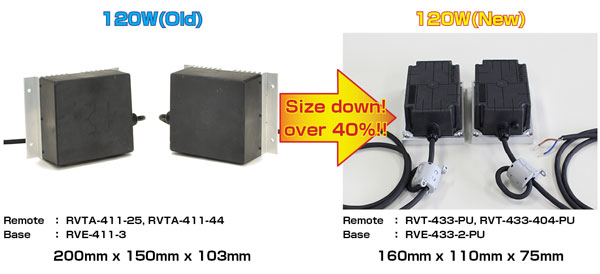

Comparison with the former products!!

Size down of a volume ration of more than 40%!




Implementation of stable charge control!

New 120W wireless power supply・charge system has a charge control circuit build-in, and ables to control the voltage, an electic current while considering the resdual quantity.

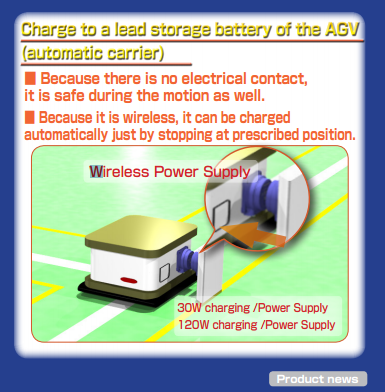

The wireless charge of a lead storage battery with a built-in AGV!

An automatic carrier (AGV) that is used for carring the parts in the factory. For the charge to the lead storage battery, mostly needs a connector or some contact, or to take out the lead storage battery for power supply. By using Wireless Charging system you can save the labor time and possible to charge automatically. Safe and improvement of the operation.


We have various products depending on your needs.

■ Product brochure(PDF)
Wireless Power Supply and charge in each 12V and 24V

120W Wireless Power Supply and charging

○Need less Power!
30W Wireless Power Supply and charging

○Need more Power!
210W Wireless Charging System



Please contact if you have any problems or questions regarding Wireless Power Supply and charging.
